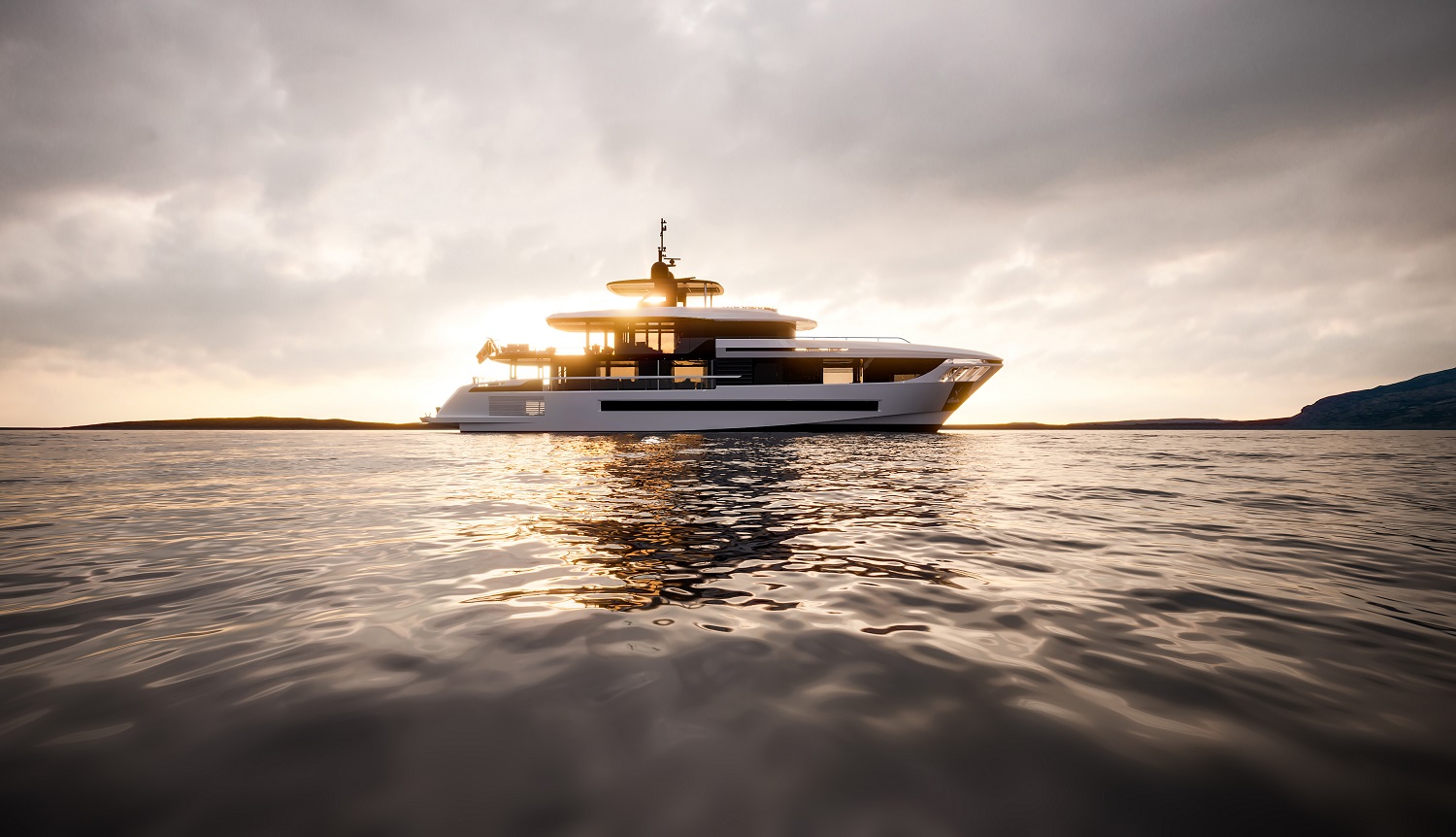

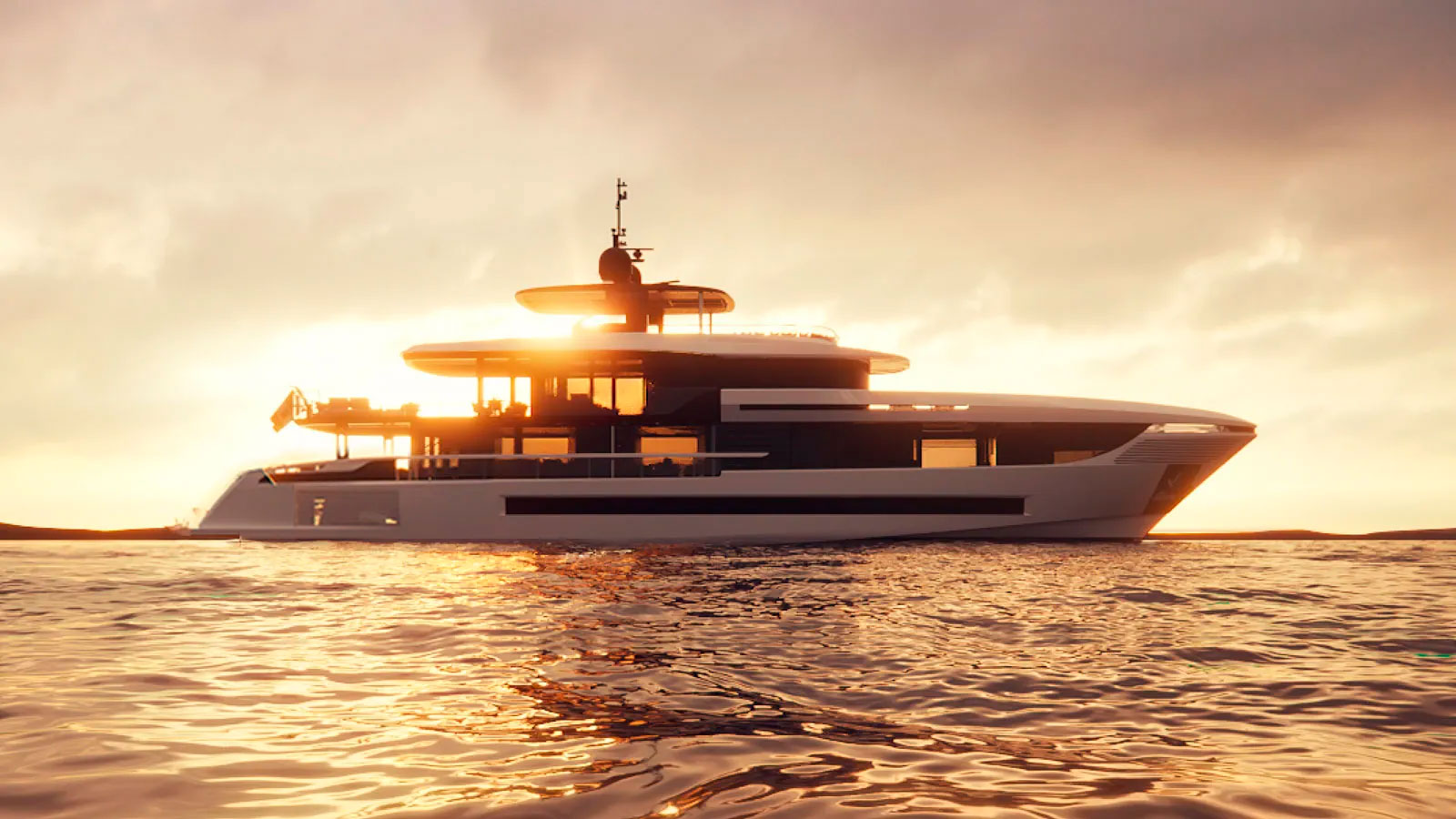

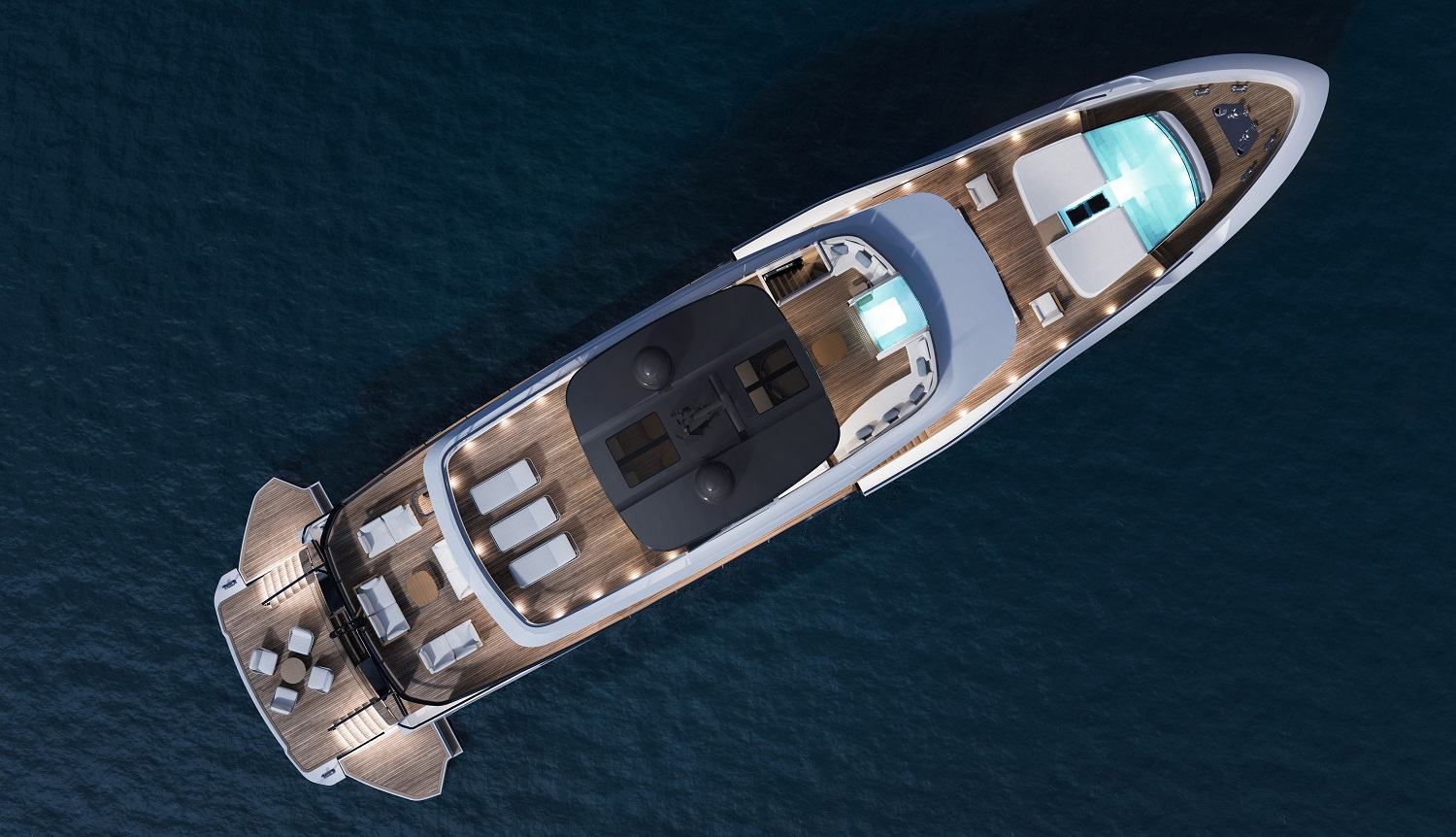

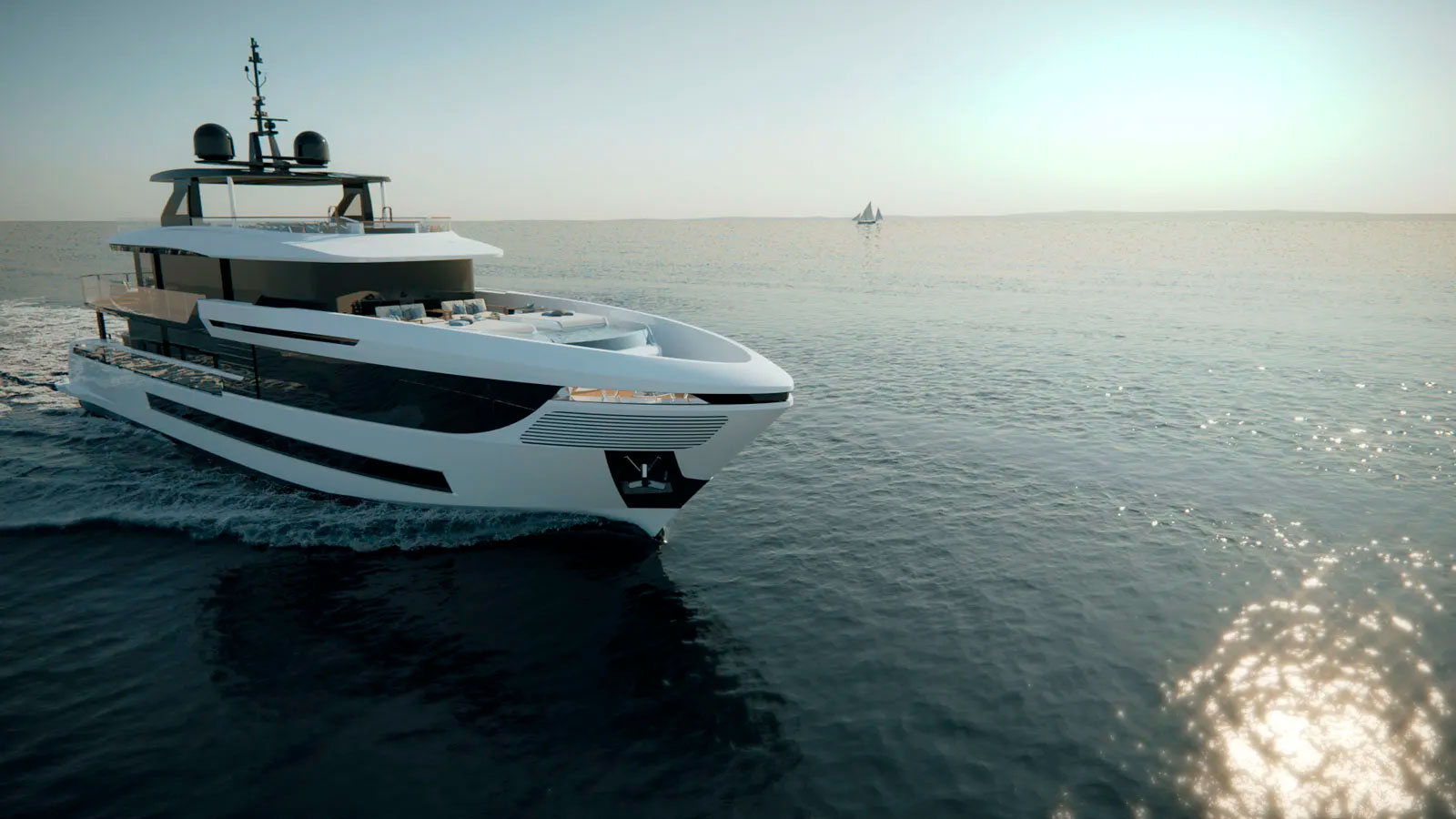

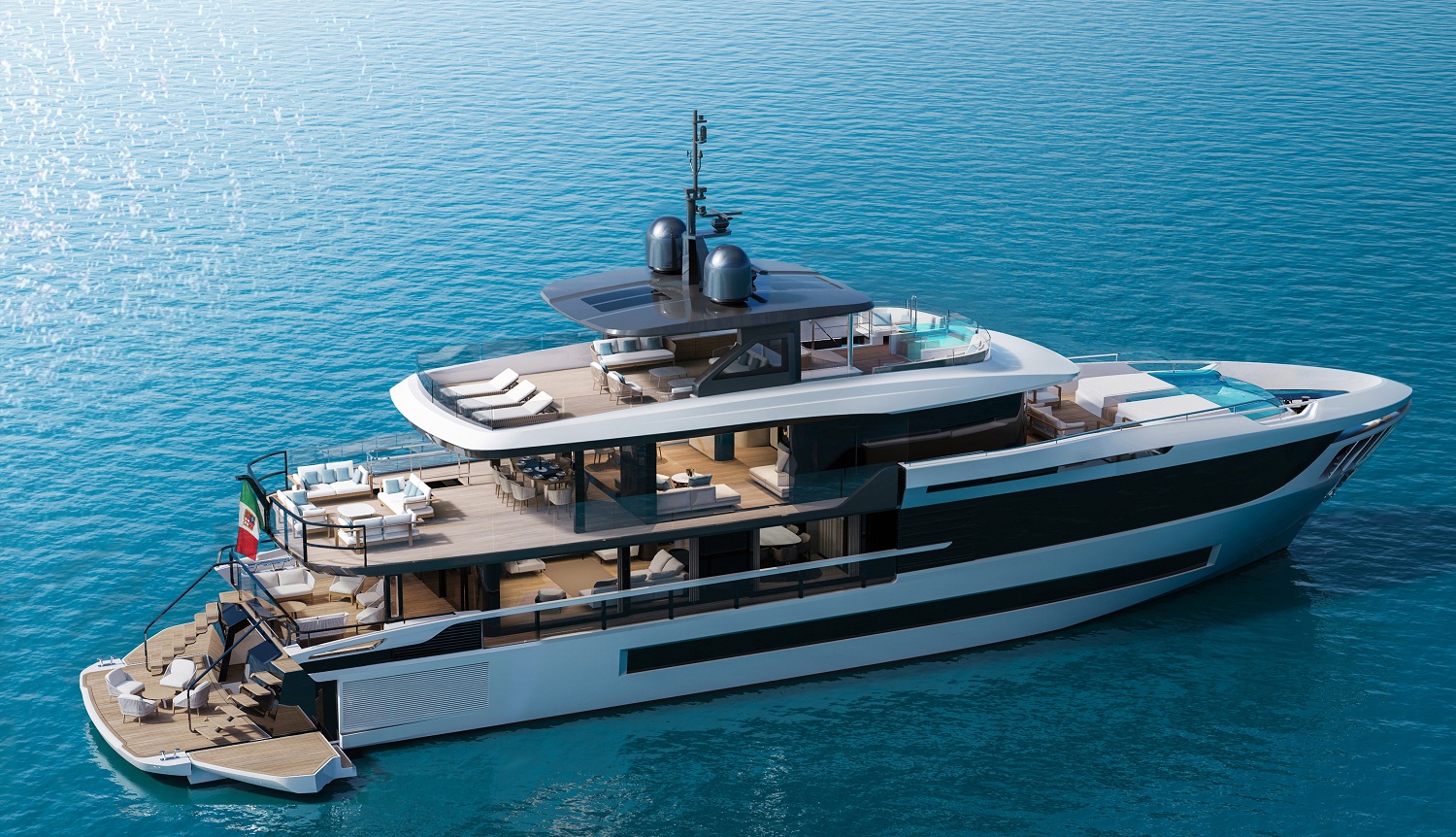

Mangusta Oceano 39

SPECIFICATIONS

CONSTRUCTION

HULL
SINGLESKIN COMPOSITE
SUPERSTRUCTURE
CARBON FIBER

DIMENSIONS

LENGTH
39.20 M / 128'
BEAM
8.50 M / 28’
MAX DRAFT
2.3 M / 7'7''
DISPLACEMENT AT FULL LOAD
240 T / 529,110 LBS
DISPLACEMENT AT HALF LOAD
238 T / 524,700 LBS
GROSS TONNAGE
324 GT

TANK CAPACITY

FUEL CAPACITY
29,500 L / 7,793 US GALS
WATER CAPACITY
4,000 L / 1,057 US GALS

PROPULSION

MAIN ENGINES POWER
2 X MTU 12V 2000 M86 1700 HP @ 2450 RPM (1268 kW) / 2 X MTU 16V 2000 M96L 2600 HP @ 2450 RPM (1939 Kw)
TRANSMISSION
2 SHAFT LINES WITH FIXED PITCH PROPELLER
STABILIZERS
ZERO SPEED AND UNDERWAY

PERFORMANCE

MAX SPEED
15 KNOTS - M86 / 18 KNOTS - M96L
CRUISING SPEED
12 KNOTS - M86 / 16 KNOTS - M96L
ECONOMICAL SPEED
10 KNOTS - M86 / 10 KNOTS - M96L
RANGE AT ECONOMICAL SPEED
2050 NM - M86 / 2050 NM - M96L

ACOMODATION

GUESTS
UP TO 12 IN 5 CABINS
CREW
7 IN 4 CABINS

DESIGNER

EXTERIOR DESIGN
ALBERTO MANCINI / OVERMARINE GROUP
INTERIOR DESIGN
AlOVERMARINE GROUP (CUSTOM INTERIORS AVAILABLE)
